Offer for VIM40-630-B High Torque Hydraulic Motor with Integrated Brake (Eaton VIS 40 Equivalent)
Review this offer for VIM40-630-B High Torque Hydraulic Motor with Integrated Brake (Eaton VIS 40 Equivalent), including supplier country, quantity, brand preference, and required delivery timing before unlocking contact details.
- Empresa
- Sólo Miembros
- Nombre de la persona de contacto
- Sólo Miembros
- Marca
- EATON CHARLYNN
- Ctdad
- N
- País
- Otros
- Fecha
- 02 abr. 2026
Descripción de la pieza
Interchangeable with Eaton Char-Lynn VIS 45 series

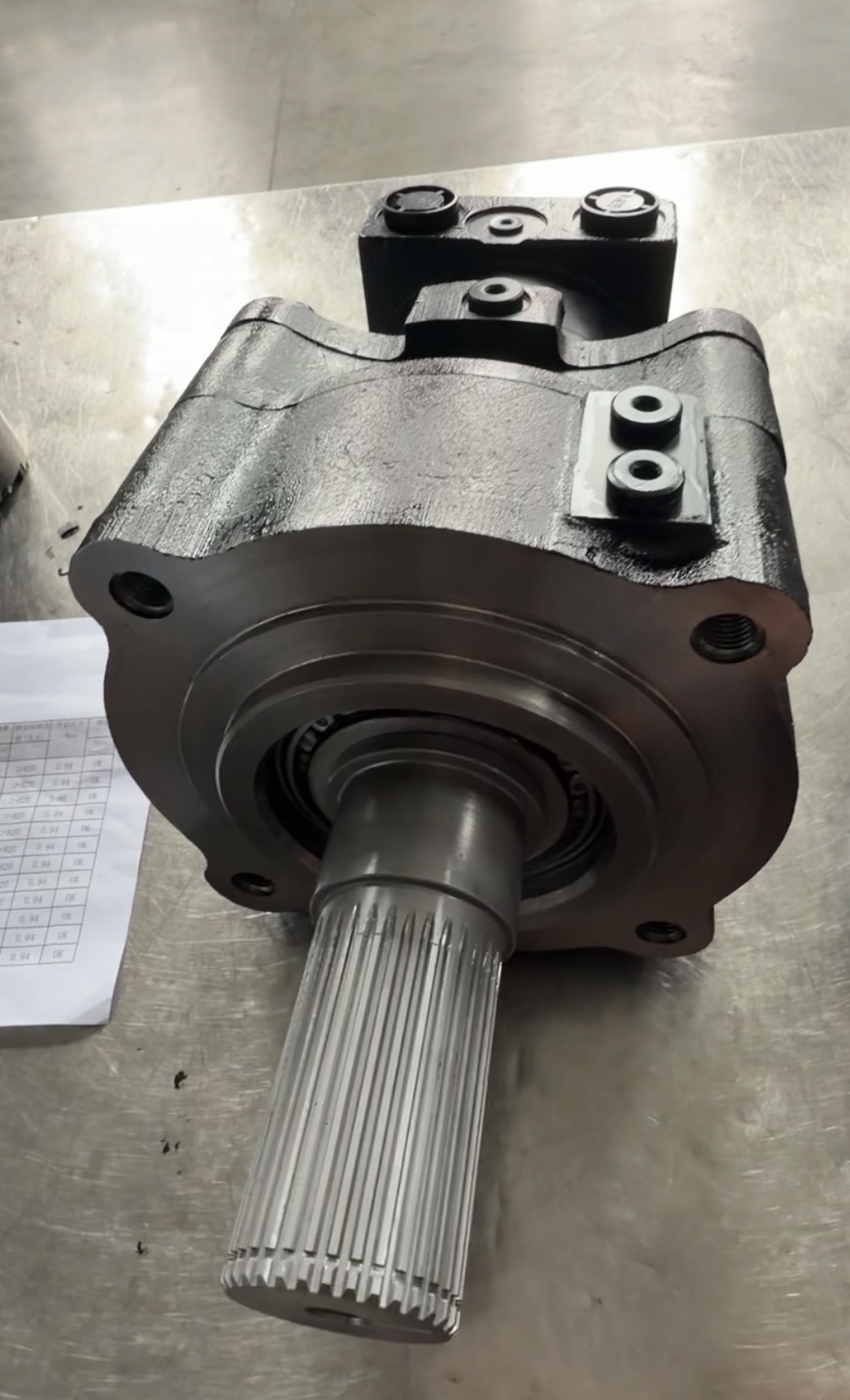

Displacement: 630cc (High Displacement for extreme torque requirements). Brake Integration: Built-in Static Brake with 1026 N.m Holding Torque. Mounting: Standard 4-Bolt Square Flange (Bolt Circle Diameter: 224mm). Shaft Type: Splined Shaft (DP 16/32-24) – Ideal for heavy-duty drive applications. Port Sizes: Main G 3/4" BSP Ports / G 1/4" Drain & Pilot Ports.
Application Versatility:
These motors are designed for high-pressure durability (up to 250 bar continuous) with increased internal clearances to prevent thermal expansion issues in heavy-duty cycles.
Perfect for winch drives, heavy conveyor systems, and industrial machinery requiring robust start-stop performance under load.
Condition:
Brand new, unused, and immediately available from stock.
Full technical drawings and inspection reports can be provided upon request.
Displacement: 630cc (High Displacement for extreme torque requirements). Brake Integration: Built-in Static Brake with 1026 N.m Holding Torque. Mounting: Standard 4-Bolt Square Flange (Bolt Circle Diameter: 224mm). Shaft Type: Splined Shaft (DP 16/32-24) – Ideal for heavy-duty drive applications. Port Sizes: Main G 3/4" BSP Ports / G 1/4" Drain & Pilot Ports.
Application Versatility:
These motors are designed for high-pressure durability (up to 250 bar continuous) with increased internal clearances to prevent thermal expansion issues in heavy-duty cycles.
Perfect for winch drives, heavy conveyor systems, and industrial machinery requiring robust start-stop performance under load.
Condition:
Brand new, unused, and immediately available from stock.
Full technical drawings and inspection reports can be provided upon request.
